Applications

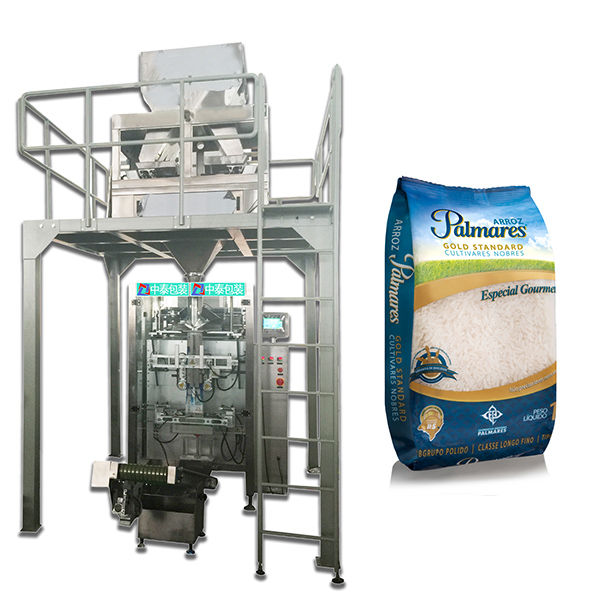

Integrated with multi-head dosing system, the ZVF series packaging machine is suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule, as well as with widely application in chemical, food, pharmaceuticals, seeds and other industrial fields.
Features
- PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
- Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
- Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
- External film releasing mechanism: simpler and easier installation of packing film.
- Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
- Close down type mechanism , defending powder into inside of machine.
Technical Specifications
| Type | ZVF-520 |
| Bag Length | 80-370mm |
| Bag Width | 80-250mm |
| Max. Film Width | 520mm |
| Packing Speed | 5-60bag/min |
| Air Consumption | 0.4m³/min |
| Power Voltage | 2.7KW 220V 50/60Hz |
| Dimension | 1650x1170x1700mm |
| Weight | 800KG |
Four Heads Linear Weigher
ZJS-2K-4F Four Heads Linear Weigher is suitable for tiny granule products such as sugar,salt,seed,rice,sesame,gourmet,coffee beans and seasonings,etc.
Main Features:
*Original program can be restored.
*Piece counting function.
*IP65 certificate
*Unqualified weight reject.
*Step motor angle can be set according to different product.
*99 program can be preset.
*Each hopper can be a single weigher.
*Product mix function is available.
Specifications
| Model | ZJS-2K-4F |
| Weighing Range | 10-2000g |
| Weighing Accuracy | ±0.2-2g |
| Max. Weighing Speed | 10-50 WPM |
| Hopper Volume | 2000ml |
| Control System | MCU |
| Operation Panel | 7 inch touch screen |
| Power Supply | AC220V ±10% ,50Hz(60Hz) 1KW |
| Net Weight | 160KG |
