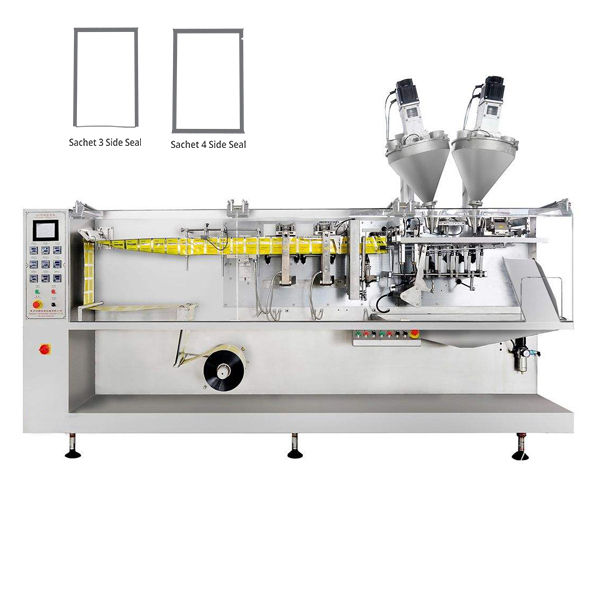

30g powder bag horizontal form fill and seal packaging machine

30g powder bag horizontal form fill and seal packaging machine

Applications


ST-180 Standard model for small bags. Flexible design and good pouch appearance.

ST-180 packaging machine can can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery. It is suitable for filling different products such as powder, granule, tablets, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.



Pouch Opening


  1. Multi-group vacuum cups desgin, high bags
  2. High bags applicability



Light Walking Beam


  1. Faster working speed
  2. Longer operational life span



Independent Sealing Device


  1. Independent pouch making, no product on seal
  2. Higher seal strength, less leakage
  3. Better pouch appearance



Features


1) PLC control, English and man-machine interface, operating easy and simple maintain.

2)  Bagging, sealing and filling is relatively independent of the system

3)could fill powder, granule or liquid product by change filling device,two or even more products are nice with one machine.

4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.

5) sanitary package for your product and perfect package appearance.

6) Easy and fast adjustment of change over, smooth performance and low noise Sensible safety device and no pollution during production to get Friendly working environment



Technical Data


Model ST-180
Measuring range 0-300g
measuring method Auger filler ; Volume cup ; Hopper Linear Weigher
bag size Length: 70-225mm  Width:65-180mm
Capacity(max) 70 bags/min
Control style PLC+ English touch screen
Power 5KW
Power supply AC 380/220V 50Hz
Air pressure 0.6Mpa
Weight N.W.:1600Kg
Dimensions(mm) 3500(L)×940(W)×1370(H)
Bag shape Three or four side sealing
