Applications
It is suitable for weighing packing dry food with irregular shapes and requiring high measuring accuracy,
such as: macaroni,prawn cracker, potato chips,crunchy snacks,banana chips, crispy rice, biscuit, peanut, roasted seeds,sweets,various nuts,salt,sugar,frozen food,vegetable,hardware,plastic parts, accessories, etc..
Features
- Standard with combination multi-head weigher, high-precision, high- speed, high automation.Easy to operate and control.
- Widely used in food industry for weighing packing irregular and uneven weight products.
- Adopts PLC with touch control screen,human machine interface,easy to learn and operate.
- Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning. Horizontal sealing by servo motor with high speed and high efficiency.
- Z type bucket chain material conveyor makes all processes automatically and perfect.
Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications
| Items | Content |
| Packing speed | 20-70 bag/min |
| Bag size | (L)60-300mm (W)80-200mm |
| Bag making mode | Pillow-type bag, standing bag, punch |
| Range of measuring | 150-1000ml |
| Max packaging film width | 420mm |
| Thickness of film | 0.04-0.08mm |
| Air consumption | 0.8Mpa 0.5m/min |
| Main power/voltage | 2.2KW/220V 50-60Hz |
| Dimension | 1320×920×1392mm |
| The weight of switchboard | 450kg |

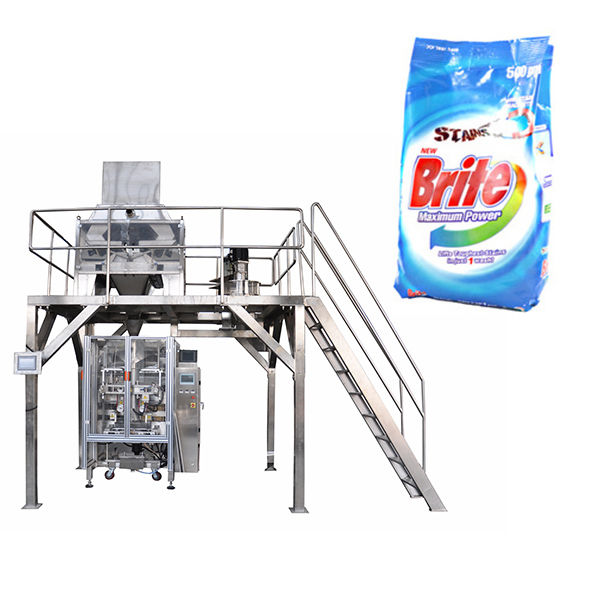

Automatic Linear Weigher Machine
The four-head linear and six-head Automatic Linear Weigher Pouch Packing Machines are suitable for weighing grains, rice, coffee beans, sesame, capsules, seeds, granulated sugar, salt, chicken essence, melon seeds, nuts, pet food, washing powder, pesticide, fertilizer, feed, milk powder, coffee powder, food additives, condiments, coconut powder, pesticide powder, fertilizer granules, etc. Dual vibration feed and PLC touch screen control system make the Automatic Linear Weigher Pouch Packing Machine easy to operate.
| Machine Name | 4 Head Linear Weigher VFFS Machine |
| Model | ZLW – 04 |
| Filling Capacity | 5 – 1000 Gms. |
| Weighting Speed | 1000 to 4000 Pouches /Hr. |
| Total Power | 3 Kw. 220v. Single Phase 50 / 60 Hz. |
| Air Compresser | 8 Cfm with 6 bar Pressure |
| Weigh | 700 Kg |
| Dimension | 1000 mm x 1200mm x 2550 mm (D x W x H) |
| Main Features |
The four-head linear weigher and six-head weigher, suitable for weighing granule and powder, provide high speed and high precision PLC touch screen control system, with dual vibration feed, easy to operate All parts of the multi-head weighers are made of stainless steel. Hence, the measuring equipment is corrosion resistant, dustproof, and easy to clean The multi-head weigher can be used independently or combined with packing machine or other packing related equipment |
