Applications
ZTCK-15 Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-25kg, the maximum speed can reach 3-8bags/min. High efficiency, advanced design suitable for various requirements
Features
The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Automatic picking-up bag system: Automatically pick up the prepared bag.
Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
Hugging bag and conveying mechanism: Hugging bag and conveying bag.
Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
Electrical control part: Completely control the whole packaging unit.
Automatic weighing machine: ZTCK-15 screw weighing machine
Conveyor: Convey material automatically
Technical Data
1) Bag type: 1. Woven Bags (covered film)
- Kraft paper bags
- Plastic composite film (thickness greater than 0.2 mm)
2) Bag size (Unit: mm): (530-750) * (250-380) L * W
3) Filling range: 5-10kg

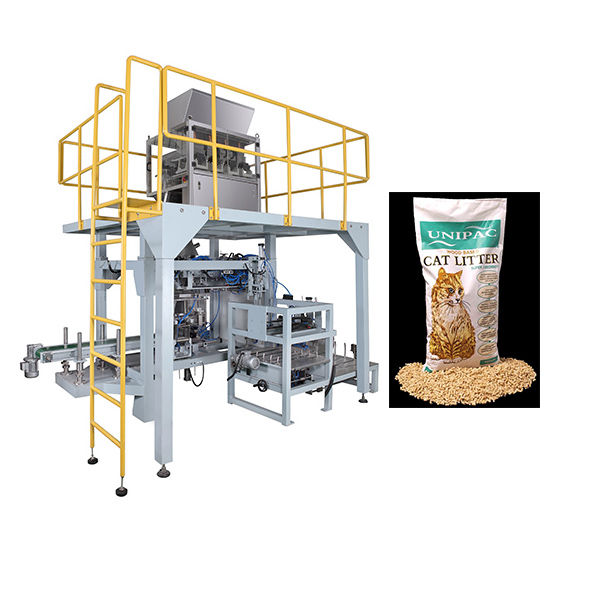

Filling Material:granule like feeds,grain,seeds and cat litter
4) Measurement accuracy: ±50g
5) Speed:12-15bags/ minute (depending on packaging materials, bags and other dimensions may vary slightly)
6) Air supply: about 0.5 ~ 0.7Mpa
7) Power: about 2.5 KW 380 ± 10% 50HZ
8) Machine Dimensions (unit: mm): 3800 × 1800 × 1700 (L × W × H)
9) Seal: 1. Woven bag:lura folding/ seaming
2 kraft paper bags: sealing / seaming
3 composite film bag: sealing
10) Machine Weight: 5500KG
