Applications

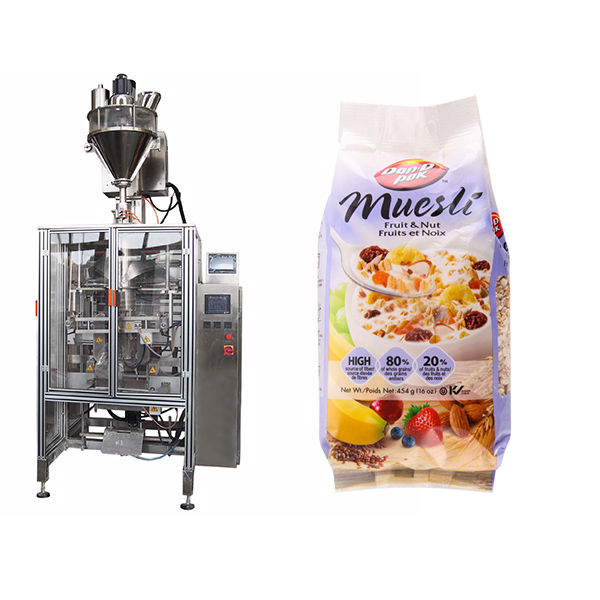

Vertical Form Fill Seal With Auger Filler Packing System for powder products,such as milk, flour, spices,pharmacy,ground coffee,cocoa powder etc.
Features
Simens PLC controller, Neumatics brand festo
Touch screen interface for easy operation.
Intelligent temperature control system.
Servo drive for film pulling system.
Photo sensor for automatic tracking eye marks.
Date printer and film feeding system synchronous working.
Servo motor drive screw, split hopper could be easy open and clean.
Technical Specifications
| Power | 5 KW | Film width | Max.820mm |
| Dimension(L*W*H) | 1600*1530*2110 mm | Max width of the Film | 820 mm |
| Weight | 850 KG | Voltage | 110V/220V, 50HZ/60HZ |
| Speed | 5~50Bags/Minutes | Function | Sealing , Wrapping |
| Bag Width | 250~400mm | Warranty | 1 year |
| Bag Length(Max) | 500 mm | Material quality | 201/304 Stainless Steel |
| Filling range | 15 L | Control | PLC |
| Packaging Type | Bags , pouch , Stand-up Pouch | ||
| Film Roll Diameter | Outer diameter ≤350mm.Inner diameter 75 mm | ||
| Packaging Material | OPP , CPP OPP , CE PET , PE NILO , PE PE | ||
| Bag sealing type | Standard pillow bag, pillow bag with gussetd,bottom bag and much more | ||
| Application | Chemical , Commodity , Commodity , Food , Machinery & Hardware , Medical , Textiles | ||
| Optional device | Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Air-filling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag | ||
| Model | Auger filler |
| Weighing range | 10~5000g(One auger screw for one differeng weight range) |
| Weighing accuracy(g) | Range<100g, deviation:0.5~1g |
| Range: 100~5000g, deviation:0.5~1% | |
| Filling speed | 10~50 bags per minute |
| Material hopper | 50L |
| Voltage | 220V/380V |
| Gross weight | 200Kg |
