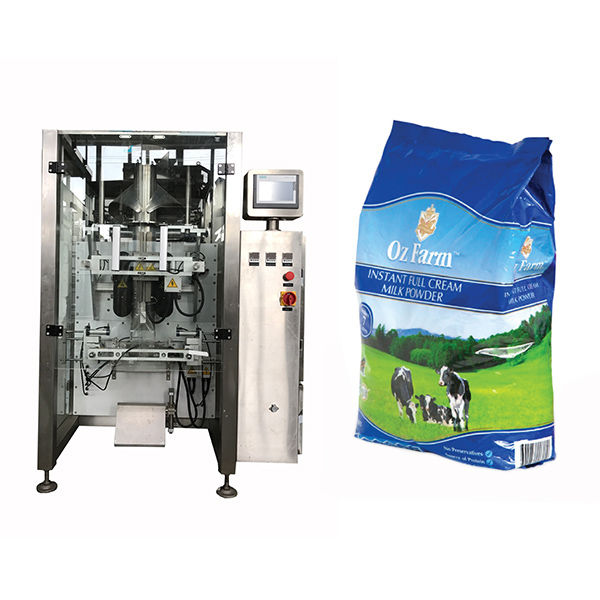

Usage
Suitable for dosing packing powder, granules, free flowing material etc. Such as milk powder, flour, rice, corn, seeds, grains, salt, tea, coffee,food additives, spices, pet food, biscuits, puffed food, candy, nuts, frozen food, washing powder, feed and other products
Working Processes :
Feeding–Conveying–Weighting–Forming ( Filling–Sealing ) –Finish Products Conveying
Features:
- English and Chinese screen display, operation is simple.
- PLC computer system, function is more stable, adjustment any parameters not need stop machine.
- It can stock ten dispose, simple to change variety.
- Sever motor drawing film, position accurately.
- Temperature independent control system, precision get to±1°C.
- Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
Technical parameters
| Type | ZVF-420F |
| Application | powder packing machine |
| Bag length | 50-300mm(L) |
| Bag width | 50-200mm(W) |
| Max width of roll film | 420mm |
| Packing speed | 30-40bags/min |
| Measuring range | 150-1200m |
| Air consumption | 0.65mpa |
| Gas consumption | 0.3m3/min |
| Power voltage | 220VAC/50Hz |
| Power | 2.2 KW |
| Dimension | 1080mm(L)*1300mm(W) *1400mm (H) |
| Weight | 600 Kg |
Optional Item:
| Optional Features | Options/Description |
| Sealing Patterns | Checkerboard pattern |
| Flat line pattern | |
| Other customized pattern | |
| Sachet Cut-off Shape | Flat cut-off |
| Serration cut-off | |
| Linking pouch cut-off | |
| Tear Notch | To make tear notch with specific shape |
| Code Printing | Pressing type coder built-in |
| Ribbon code printing | |
| Code inkjet printing | |
| Hang Hole | To make hang hole with specific shape |
| Dust Collecting Device | To collect the dust during dosing |
| Inflating & Deflating | Air / Nitrogen Inflating |
| Air deflating | |
| Packaging Film Correction Device | To ensure correct movement of the packaging film |
How to choose most suitble packing machine?
For offer you most suitble packing machine and reasonable price, Please help to confirm below information:
1. What products to be packed?
2. What kind of product,free flow or non free flow?
3. Bag length and bag width?
4. Film materials:aluminium,opp and single layer PE plastic?
5. Bag type:3 or 4 sides sealing,back/ pillow sealing , gusset bag ?
6. Bag weight?
Packing Line for choosen:
1. Z-shaped Elevator/Screw feeder/One bucket feeder
2. Working platform
3. Multi-head Weigher/Auger filler/Cup filler/Linear weigher
4. Output Conveyor
5. Vibration feeder
