Product description

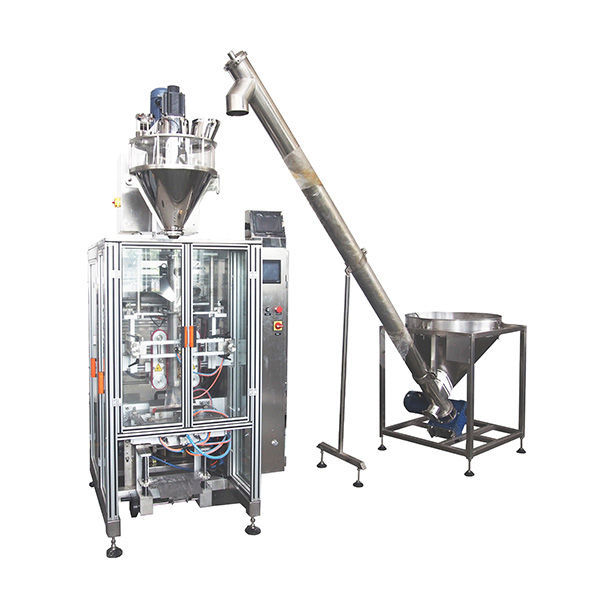

Vertical Form Fill Seal With Auger Filler Packing System for powder products,such as milk, flour, spices,pharmacy,ground coffee,cocoa powder etc.
Integrated packaging system, including powder Screw elevator, Auger filler dosing system, automatic bag making machine and accessories units.
Features
- High-speed capabilities up to 70 packs per min
- Variety of package styles including pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators
- With the ZVF-Q series the production of block bottom bag sealed at the 4 edges for more stability (quad seal pack) is available.
- Omron controls as standard
- User-friendly interface
- Rapid changeover
- Stainless steel systems
- Customized to meet your production, package style and economic requirements
Additional Info
- Bag Styles:Pillow Bag
- Bag Width:60 to 200mm (2.4 to 7.9″)
- Bag Length:50 to 300mm (2.0 to 11.8″)
- Product Characteristic:Granules, Powders, Liquids, Pastes
- Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler
- Running Motion:Intermittent
- Working Efficiency: 180 bags / min
- Control By:PLC with HMI Touch Screen
- Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
- Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
- Power & Voltage:8 KW
- Compress Air:7MPa 0.3 M3/min
- Dimensions:1380mm*980mm*1400mm (54.3*38.6*55.1″)
- Machine Weight:600 KGS
Applications
Food : small, MSG, cereals, desiccants and triple coffee, sesame paste, soy milk power, good mobility powder ,make bags,fill, seal, cut, and print codes.
Commodity: sugar, salt, rice, seeds, beans, desiccant, nuts (cashew, pistachio, almonds, peanuts etc) coffee powder, milk-tea powder, washing powder.
Hardwares : hinge, stainless steel pipe, bearings , screw, nuts and washer, etc.
