Device Profile

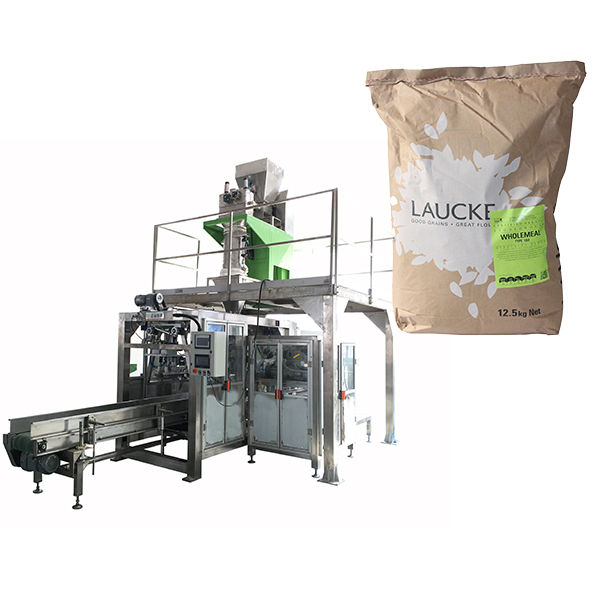

Automatic Powder Premade Big Bag Packing Machine is developed for non-sticky powder material
packing for agriculture, chemical, and food industry etc.
Functional Features
1.Provided with the functions of automatic bag-fetching, filling, bag-conveying and sealing.
2.Linked with all kinds of powder materials production equipment to work to achieve production of
large-sized packaging operations without man.
3.LCD touch screen control (up to IP65 above grade waterproofing, dustproof, can be adapted to
humid, dusty work environment), good human-computer interface.
4.Automatic fault diagnosis, safety shutdown protection, quick adjustment and easy maintenance.
Packing materials
- Woven Bags (covered film)
- Kraft paper bags
- Plastic composite film (thickness greater than0.18mm)
Main Technical Parameters
| Size of bag making | (700-1100mm)x(480-650mm) (L*W) |
| Measuring range | 10-25kg/bag |
| Measurement accuracy | ±50g |
| Packaging speed | 3-8 bags /min (difference according to the packing materials, bag size etc.) |
| Ambient temperature | -10°C~+45°C |
| Power supply | 3.2 KW, 380V±10%, 50Hz |
| Air Consumption | compressed air 0.5-0.7Mpa |
| External dimensions | 4200 x 2200 x 2100mm(L* W * H) |
| Weight | 1400kg |
Sealing
1.Woven bag: lura folding/seaming
2.Kraft paper bags: sealing/seaming
3.Composite film bag: sealing
