Applications
* The machine can be supported by auto weighing machine, meter glass dosing machine, manual batch conveyor
and spiral dosing machine. It has an extensive range of package, suitable for packing of each kind of item such as grains,
blocks, bars and powder, etc
Features
*Advanced design for complete machine, reasonable structure, convenient adjusting operation and maintenance;
* standard positioning with servo film transporting system; stable for transporting film with two synchronous belts;
* high automatization with auto correction function;* minimize the consumption with multiple kinds of auto warning protection function
* supported by metric device, the machine can automatically complete all packing processes from measuring, feeding, filling.
Technical Specifications
| Item | Content |
| Capacity | 60 bag/min,it is according to quality of wrapping and supplies |
| Accuracy | ≤±1.5% |
| Bag size | (L)60-300mm (W)60-200mm |
| Film width | 420mm |
| Bag type | Pack with film, upper seal, lower seal and back seal by automatic bag making machine. |
| Filling range | 150-1300ml |
| Film thickness | 0.04-0.09mm |
| Package material | BOPP/CPP,PET/AL/PE
thermal composite material., likeBOPP/CPP, PET/AL/PE etc |
| Air consumption | 0.8Mpa 0.5m3/min |
| Total powder | 5.495KW |
| Voltage | Four wire three phase 380V 50HZ |
| Air compressor | Not less than 1 CBM |
| Total height | 3.358 m |

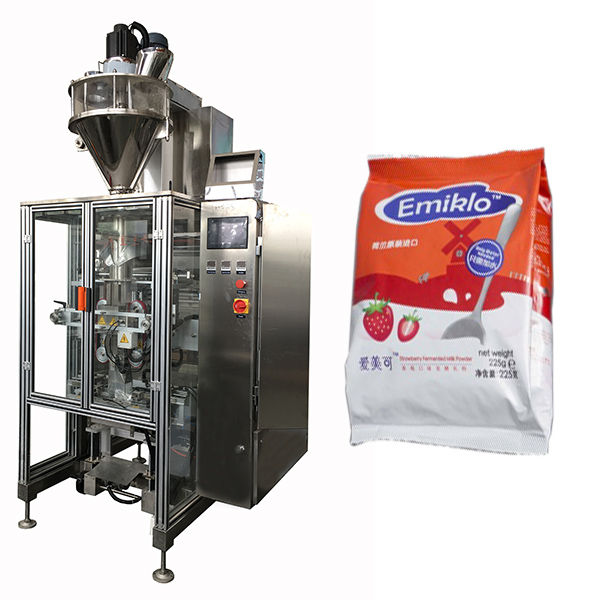

Auger Filler
♦.25L side opening Hopper ,easy to clean
♦.Packaging powdery in 50-500g bottle or bag .
♦.Servo motor drive the auger ,got high accuracy .
♦.Have one stir on the hopper ,assure the powder fill in the auger .
♦.Chinese/English or custom your language in the touch screen.
♦.Reasonable mechanical structure, easy to change size parts and clean up.
♦.Through changing accessories, the machine is suitable for various powder products.
♦.We use famous brand electric ,more steady .
♦.We match one vacuum cleaner ,collect dust and easy to clean the machine .
| Item |
Small type auger filler |
Middle type auger filler |
Large type auger filler |
| Filling range | 1-300g | 10-1000g | 10-5000g |
| Metering speed | Max60 bags/min | Max50 bags/min | Max40 bags/min |
| Metering accuracy | ±0.3-1.5% | ±0.3-1.5% | ±0.3-1.5% |
| Total power | 380V/1KW | 380V/2.5KW | 380V/3KW |
| Machine Dimension | L510×W585×*H930mm | L690×W1030×*H1100mm | L600×W1250×*H2000mm |
| Auger filler weight | 100kg | 150kd |
200kg |
