Applications

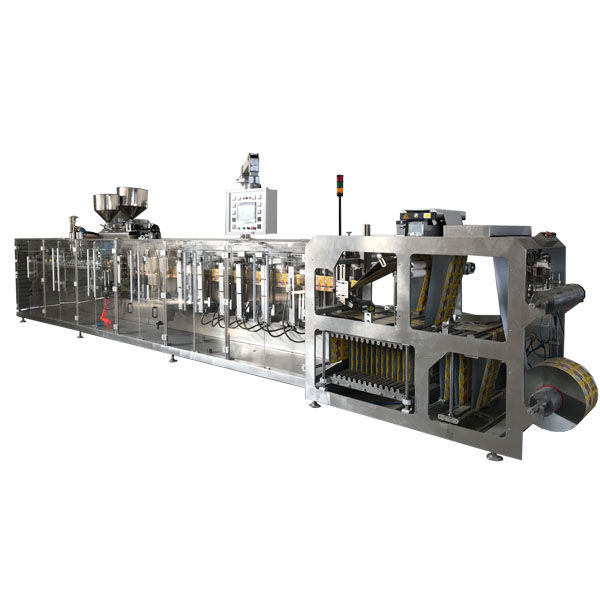

This automatic stand pouch horizontal form fill seal packing machine is applicable for packing liquid and paste such as juice, drinks, vinegar, food seasoning, ketchup, shampoo, medicine liquid etc in the industries of food, medicine and pharmacy etc. It is forming filling sealing a standup pouch with zipper, without zipper etc.
Features
PLC control , English and man-machine interface, operating easy and simple maintain ;
Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film;
easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .
smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment
Technical Data
| Model | SHF-180 | SHF-240 |
| Pouch Types | Flat bag, or with optional Hanging hole, Zipper, Spout | |
| Pouch Size (mm) | 60 x 80 (Min.) | 100 x 120 (Min.) |
| 180 x 225 (Max.) | 240 x 320 (Max.) | |
| Volume (Max.) | 400ml | 1000ml |
| Speed (bpm) | 40 to 80 | 30 to 70 |
| Power (kw) | 5.5 | 5.5 |
| Air consumption | 200NL/Min. | 300NL/Min. |
| Outer Dimension | 4300 (L) | 5000 (L) |
| 970 (W) | 1120(W) | |
| 1500 (H) | 1500 (H) | |
| Weight (kg) | 1600 | 2000 |
Our Services
How about the after sale service?
a. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
b. We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts. We provide technical support for our machines for life-long time.
c. We can provide installation and maintenance service at your place if you need.
