Applications
Suit for the quantitative weighing of powder products, such as coffee powder, milk powder, chocolate powder, protein powder, flour, wheat powder curry powder, medicine powder etc.
Features
- Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
- Use famous brand electric and pneumatic components, stable and long life circle.
- Use superior mechanical components, reduce the wear out loss.
- PLC control with stable and high accuracy output.
- Two color touch screen 7″, one for packing machine, another for multihead weigher .
Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications
| Model | ZVF-420 |
| Bag size | L(60~300)×W(40~200)mm |
| Packing speed | 5~60 bags/min |
| Mad width of film roll | ≤420mm |
| Driving film type | by a pair of belt controlled by servo |
| Air consumption | 0.6MPa |
| Gas consumption | 0.4m³/min |
| Power requirement | 2.2KW, 220V, 50HZ |
| Machine size | L1320×W920×H1392mm |
| Machine weight | 450Kg |

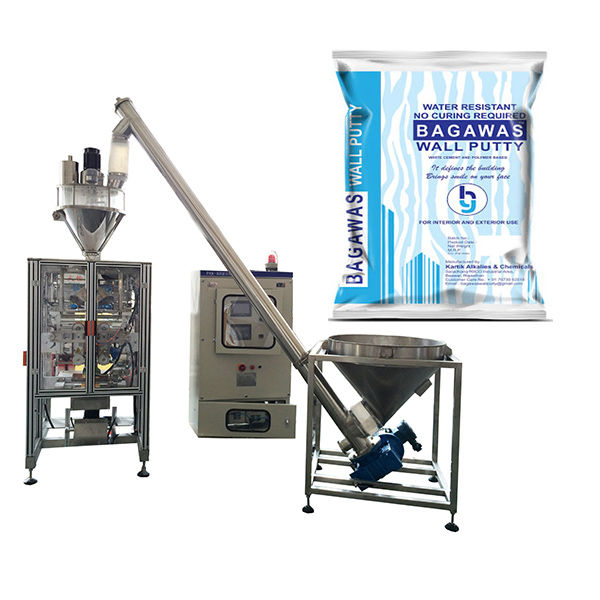

Auger filler
Application:
Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.
| Model | Auger filler |
| Weighing range | 10~5000g(One auger screw for one differeng weight range) |
| Weighing accuracy(g) | Range<100g, deviation:0.5~1g |
| Range: 100~5000g, deviation:0.5~1% | |
| Filling speed | 10~50 bags per minute |
| Material hopper | 50L |
| Voltage | 220V/380V |
| Gross weight | 200Kg |
