Applications

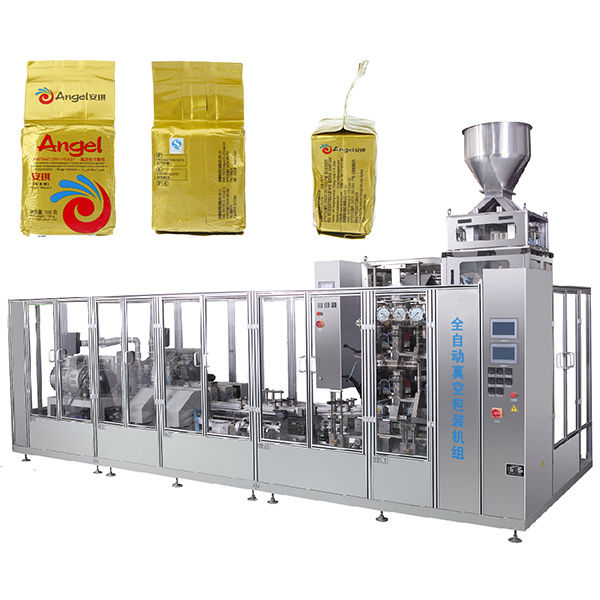

Automatic Vacuum Brick Bag Packing Machine
1) Suitable to pack ground coffee, instant dry yeast ect in vacuum brick bag
2) It has advantages of fast packing, nice and continuous sealing, good-looking appearance and the inside pumping keep the vacuum effect better, it is widely used in food, pharmacy, chemical and other industries.
Features
1, Machine fully controlled by Siemens or Omron PLC & Touch-Screen;
2, Minute capacity can automatically display on Touch screen;
3, Film transport system motion drived by Panasonic;
4, Safe quick change of tube and collar by just pull out the braket;
5, Optoelectronics detect film position on collar to correct film excursion;
6, Electrical photo sensor inducting color code to contol bag length;
7, Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting;
8, Independent temperature adjustment;
9, Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine;
10,The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt.
Vacuum &Bag Reshape System:
1, Auto Vibrate, Form, Vacuum & Reseal Brick Bag;
2, Stable working with SIEMENS PLC, Panasonic Servo Drive;
3, Adopt inside vacuumed ,two vacuum chamber fast speed.
Technical Specifications
| MODEL | ZT-500N2 | |
| Bag Type | vacuum & reseal brick bag | |
| Maximum Capacity | up to 2kg | |
| Minimum Capacity | depend on product characteristics but normal 100g | |
| Speed | 32-40bags/min (depend on products characteristics) | |
| Hopper Capacity | 50 Litres | |
| Weighing Accuracy | ± 0.2% depend on products characteristics | |
| Bag Length | 20 – 280mm | |
| Bag Width | 40 – 190mm | |
| Reel Film Width | ≤ 400mm | |
| Film Thickness | 0.04 – 0.12mm | |
| Reel Outer Dia. | 400mm | |
| Reel Inner Dia. | 75mm | |
| Voltage | AC220V/50Hz 1 phase or customer specification | |
| Power | ZVF-260 | 3kw |
| ZT-2000 | 1.2kw | |
| ZT-500N2 | 10kw | |
| Compressed Air Requirement | 0.6MPa 0.36M3/min | |
| Package | Dimension | 6600*2100*3600mm |
| Weight | 3150kg | |
We provide best packaging suitable for sea shipping:
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
