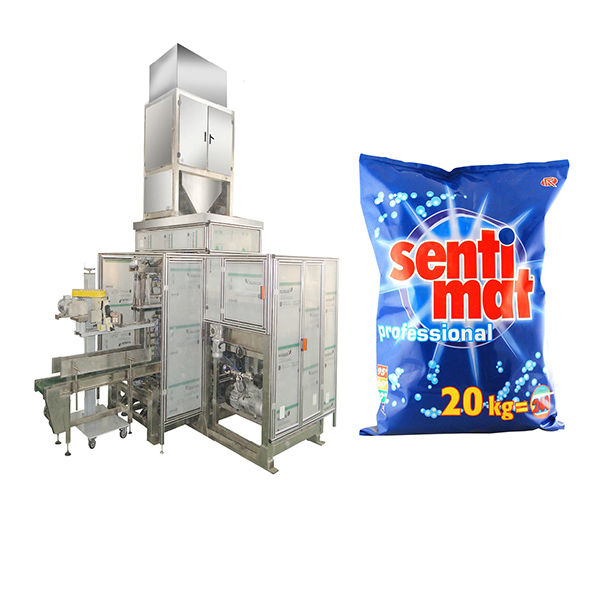

It is a reliable and heavy duty automatic packaging line for handling bulk granule products, salt, sugar, rice, seeds, pet foods, fertilizers. The product is conveyed to the weighing container by its own weight, the main feed and fine feed can be adjusted using a cut-off gate with a variable opening that, depending on production capacity, it’s driven pneumatically.
Functionality
- Individual bag pick-up and opening
- Empty bag (with or without gusset) transfer to filling mouth
- Bag hermetic fastening on filling mouth
- Bag filling (product discharge from scale or dozer) and vibrating
- Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.
Bag Types
Pre-made open mouth bag with gussets, standard pillow bag or block/cross bottom bag, with or without handle.
Bag Materials
Laminated polywoven, paper bags, PP, PE etc.
Technical Data
| Weighing range | 5 to 50kg (10lb to 110lb) |
| Bag size | L630-830mm x W 350-450mm; L800-1000 x W450-550mm; L 900-1100mm x W 550-650mm (By option) |
| Output | 3 to 16 bags per min (Depending on the product and format.) |
| Ambient temp. | -10°C to + 45°C |
| Electrical | 380V/50Hz, 3phase or customized per specification |
| Power | 3KW |
| Air Pressure & Consumption | 0.7Mpa, 0.6 M3／min |
