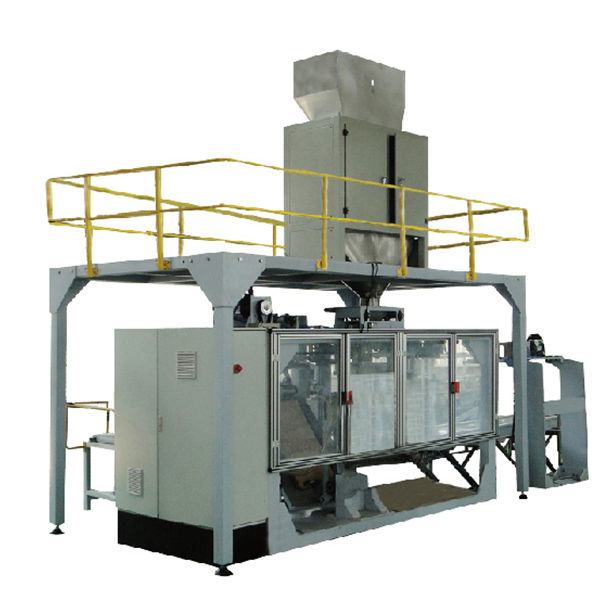

This series bag placer is designed for bagging all types of free flowing materials into plastic, paper or poly-woven open-mouth bags. It can handle pillow-type or side gusseted bags of various sizes at capacities of up to 12 bags per minute.
It combines with sewing and sealing machine creating a complete filling, sealing to palletizing line.
Configuration explanation
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Mechanism component
1 Automatic picking-up bag system: Automatically pick up the prepared bag.
2 Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
3 Hugging bag and conveying mechanism: Hugging bag and conveying bag.
4 Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
5 Electrical control part: Completely control the whole packaging unit.
6 Automatic weighing machine: ZTCFX-25 screw weighing machine
7 Conveyor: Convey material automatically
Technical Data
| SPECIFICATIONS | ||
| Technical parameters | Model | ZT-G1-1A |
| Hopper capacity | 55L/110L | |
| Packing range | 20-50KG | |
| Packing accuracy | ≤±0.2% | |
| Packing speed | 580 bags/hour | |
| Bag sizes | L600-1050;W420-520;bottom:75mm | |
| Air consumption | 750cm³/min | |
| Voltage | AC380V 50Hz | |
| Power | 3KW | |
| Machine weight | 1300KG | |
| Applications | Food: sugar, rice, grain
Feed and seed: animal feed, seeds, etc. Growing media: compost, peat moss, soils, mulch, etc. Forestry: bark, wood pellets, paper pellets, etc. Chemical: cat litter, fertilizer, plastic pellets, etc. Mineral: coal, concrete mix, gravel, salt, sand, etc. |
|
