Applications
It is suitable for weighing packing dry food with irregular shapes and requiring high measuring accuracy,
such as: macaroni,prawn cracker, potato chips,crunchy snacks,banana chips, crispy rice, biscuit, peanut, roasted seeds,sweets,various nuts,salt,sugar,frozen food,vegetable,hardware,plastic parts, accessories, etc.

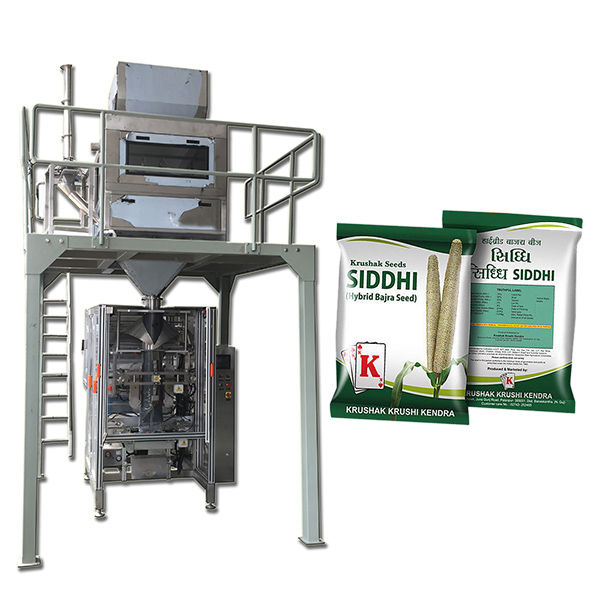

Integrated packaging system, including Linear scale, Z shape bucket loading conveyor with vibratory feeder, weigher platform with stair unit, automatic bag making machine and accessories units.
Features
- Standard with combination multi-head weigher, high-precision, high- speed, high automation.Easy to operate and control.
- Widely used in food industry for weighing packing irregular and uneven weight products.
- Adopts PLC with touch control screen,human machine interface,easy to learn and operate.
- Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning. Horizontal sealing by servo motor with high speed and high efficiency.
- Z type bucket chain material conveyor makes all processes automatically and perfect.
Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications
| Model | ZVF-420 | |
| Packing Speed | 5-70Bags/Min | |
| Bag Size | Width: 60-200mm | |
| Lengh: 60-300mm | ||
| Pouch Material | POPP/CPP,POPP/VMCPP,BOPP/PE,NY/PE,PET/PET | |
| Type of Bag Making | Pillow bag,Gusset bag,Punching bag,Connecting bag | |
| Film Thickness | 0.04-0.09mm | |
| Aie Consumption | 0.5 m3/min 0.8Mpa | |
| Max Film Width | 420mm | |
| Power Parameter | 220 V 50/60 Hz 2200 W | |
| Gross Weight | 450kg | |
|
Package Size |
Lengh | 1550 mm |
| Width | 1150 mm | |
| Height | 1750 mm | |
| Interface | 7” HM | |
| 10” HM | ||
3L Stainless steel 4 heads linear weigher for detergent powder
1.Application
It’s suitable for powder, tiny granule products such as sugar, salt, seed, rice, sesame, gourmet powder, milk powder, coffee powder and seasonings powder, etc.
2,Main Featuresd
* High precision digital load cell
* Weinview color touch screen
* Multilanguage choice
3,Special Features
*Weighing different products at one discharge
*Parameters can be freely adjusted in running status
*New modular design, each actuator can be exchanges with easy operation.
*Innovative plug-in motor drive board helps maintenance at low cost and simple way
