Applications

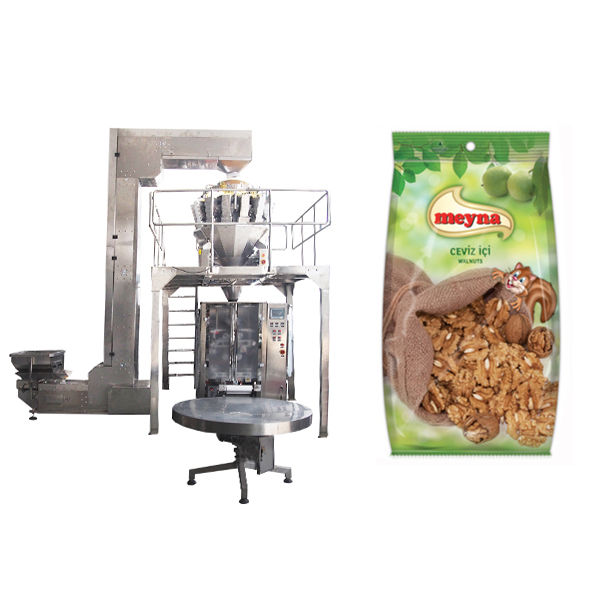

nuts vertical packing machine applications all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Features
1.Efficient: Bag – making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Technical Specifications
| Model | ZVF-420A | ZVF-520A | ZVF-720A |
| Film Width | Max.420MM | Max.520MM | Max.720MM |
| Bag Length | 80-300MM | 80-350MM | 100-500MM |
| Bag Width | 60-200MM | 100-250MM | 180-350MM |
| Film Roll Diameter | Max.320MM | Max.320MM | Max.320MM |
| Film Thickness | 0.04-0.12MM | 0.04-0.12MM | 0.04-0.12MM |
| Packing Speed | 5-60Bag/Min | 5-60Bag/Min | 5-55Bag/Min |
| Power | 220V 50/60HZ 2KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW |
| Machine Size(MM) | (L)1217* (W)1015*(H)1343 | (L)1488* (W)1080*(H)1490 | (L)1780* (W)1350*(H)2050 |
| Machine Weight | About 650KG | About 680KG | About 750KG |
| Option Device | Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device. | ||
10 Head Multihead Combination Scale
nuts vertical packing machine main features:
1,Original program can be restored.
2,Easy cleaning and maintenance with clean function, all hoppers can stay open.
3,Piece counting function.
4,IP65 certificate.
5,Unqualified weight reject.
6,Step motor angle can be set according to different product.
7,99 program can be preset.
8,Stagger dump prevents products blockage.
