Applications
It’s suitable to use in packing the high accuracy and easy fragile material , such as : such as milk powder, flour, soybean powder, medicine powder, etc
Features
- adopts the advanced PLC control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.
- adopts the stainless steel 201 for the machine’s mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine’s life-span.
- Fully sealed for the machine mainframe, keep the powder supplies clean and sanitary.
Technical Specifications

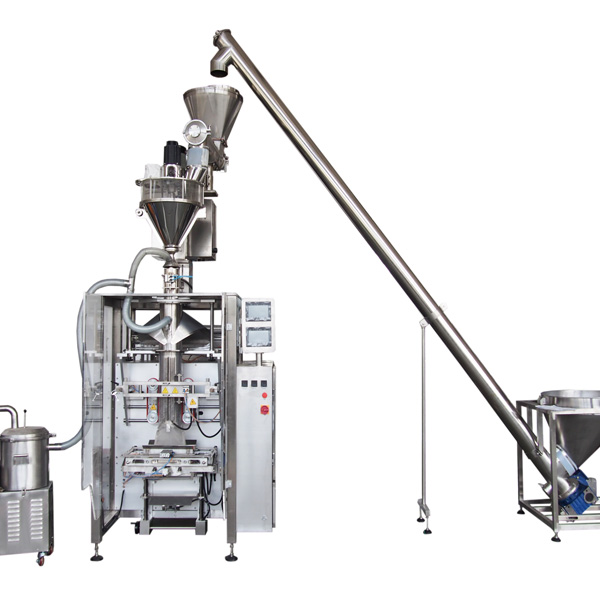

| Item | fully automatic powder spice packaging machine |
| Model | ZVF-420 |
| Filling | screw |
| Bag style | Back sealed bag,pillow bag |
| Volume/bag | 200-2000ml/bag |
| Bag size | L80-300mm, W50-200mm |
| Packing speed | 15-40 bags/min |
| Control system | PLC+ touch screen |
| material | stainless steel |
| Pneumatic | 0.6Mpa, 30L/min |
| voltage | 380V, 50Hz,3P/ 220V, 60Hz, 3P |
| Weight | G.W. 850kg |
| Dimension | L1330*W1140*H2460 (mm) |
| Power | 2.5KW |
| Film material | Paper/polyethylene; cellophane/polyethylene;
Plated aluminum/polyethylene; BOPP/polyethylene; nylon/polyethylene |
| supplies | fine Powder, such as milk powder, flour, soybean powder, medicine powder, etc |
| Main functions | Automatically measure, make bags, fill, seal, cut and print codes. |
| Model | Auger filler |
| Weighing range | 10~5000g(One auger screw for one differeng weight range) |
| Weighing accuracy(g) | Range<100g, deviation:0.5~1g |
| Range: 100~5000g, deviation:0.5~1% | |
| Filling speed | 10~50 bags per minute |
| Material hopper | 50L |
| Voltage | 220V/380V |
| Gross weight | 200Kg |
| PARTS | SUPPLIER |
| PLC | Panassonic |
| Touch Screen | Weinview |
| Servo Motor | Panassonic |
| Servo Driver | Panassonic |
| Solid state Relay | Crydom |
| Intermediate Relay | Omron, IDEC |
| Switching power supply | Schneider |
| Air Cylinder | AIRTAC |
| Gear Motor | V.T.V |
| Electromagnetic Valve | SMC |
| Pneumatic FRL | SMC |
| Sensors & controllers | AUTONICS |
