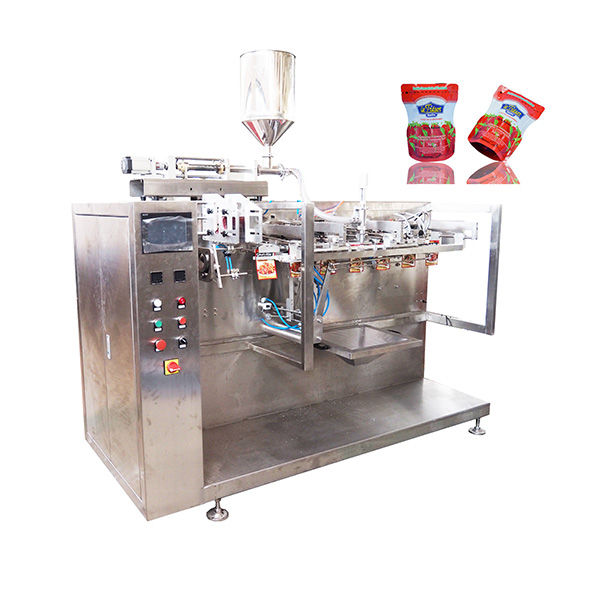

Applications
This machine is applicable for packing liquid and paste such as juice, drinks, vinegar, food seasoning, ketchup, shampoo, medicine liquid etc in the industries of food, medicine and pharmacy etc. It is forming filling sealing a standup pouch with zipper, without zipper etc.
Features
- Easy to operate,adopt advanced PLC from Germany SCHNEIDER, mate with touch screen and electric control system, the man-machine interface is friendly
2. Frequency conversion adjusts the speed: this machine uses frequency changer equipment, can be adjusted within the range according to the needs of reality in production
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. It machines with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust
5. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
6. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
7. Use no oil vacuum pump and plastic bearing; avoid polluting the environment in the production.
8. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on film.
Technical Data
| 1. Packaging material | Laminated film,PE,PP etc |
| 2. Speed | 30-70 bag/min |
| 3. Packaging accuracy | within±1.5% |
| 4. Pouch width | 95mm-205mm/90mm-235mm(supply by user) |
| 5. Pouch height | 100mm-350mm(supply by user) |
| 6. Max volume | 2500ml |
| 7. Electricity consumption | 4Kw |
| 8. Air Consumption | 0.6m³/min |
| 9. Voltage | 3phase 380V 3phase 220V 3phase 415V 50-60HZ |
| 10.Weight | 1450 kg |
