Applications

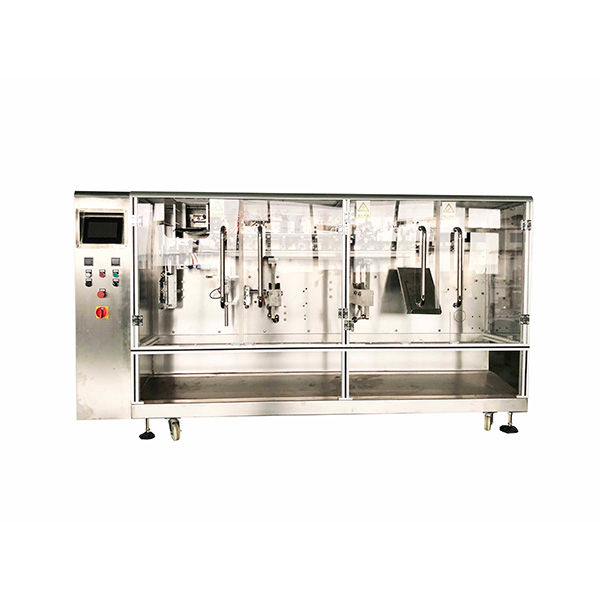

SHG Series HFFS machine is designed for pre-made doypack pouch fill and seal packaging. Strong hermetic seals, complete flexibility and rugged, it’s suited to lines running a variety of products, granules, powder, liquid, pastes etc foods and non-foods industrials.non-foods industrials.
Features
Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Automatic checking function: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
Safety device: machine stop at abnormal air pressure, heater disconnection alarm.
With liquid mixing device, prevent the micro-particle deposition of materials.
The machine is easy to clean, easy maintenance.
The part where touch to the material is made of stainless steel.
Technical Data
| Model | SHG-180 | SHG-210 | SHG-240 | SHG-280 | SHG-320 | SHG-360 | |
| Pouch Types | Pre-made Doypack, Shaped, Hanging hole, Zipper (option), Spout (option) | ||||||
| Pouch Size (mm) | (Min.) | 60 x 80 | 90 x 110 | 100 x 120 | 90 x 120 | 140 x 180 | 90 x 110 |
| (Max.) | 180 x 260 | 210 x 310 | 240 x 320 | 280 x 400 | 320 x 410 | 180 x 260 | |
| Volume (Max.) | 600ml | 1200ml | 2000ml | 3000ml | 4000ml | 1000ml | |
| Speed (bpm) | 30 to 60 | 30 to 60 | 30 to 60 | 30 to 60 | 5 to 15 | 60 to 120 | |
| Power (kw) | 1.8 | 4.5 | 5.5 | 6.5 | 2.5 | 4.5 | |
| Air consumption | 200NL/Min. | 250NL/Min. | 450NL/Min. | 450NL/Min. | 350NL/Min. | 550NL/Min. | |
| Outer Dimension | 1990 (L) | 2700 (L) | 3600 (L) | 4100 (L) | 1800 (L) | 5100 (L) | |
| 970 (W) | 970 (W) | 1100(W) | 1020(W) | 1020(W) | 980(W) | ||
| 1390 (H) | 1400 (H) | 1500 (H) | 1500 (H) | 1300(H) | 1400 (H) | ||
| Weight (kg) | 700 | 900 | 1800 | 2000 | 700 | 2100 | |
FAQ
Normally we have some questions to customers,
1. What is you want to pack?
2. How many grams to pack?
3. What is volume?
4. What is voltage and Hertz in your local?
If you want to design the special packing machine, we can manufacture the packing machine as your requirements
