Applications

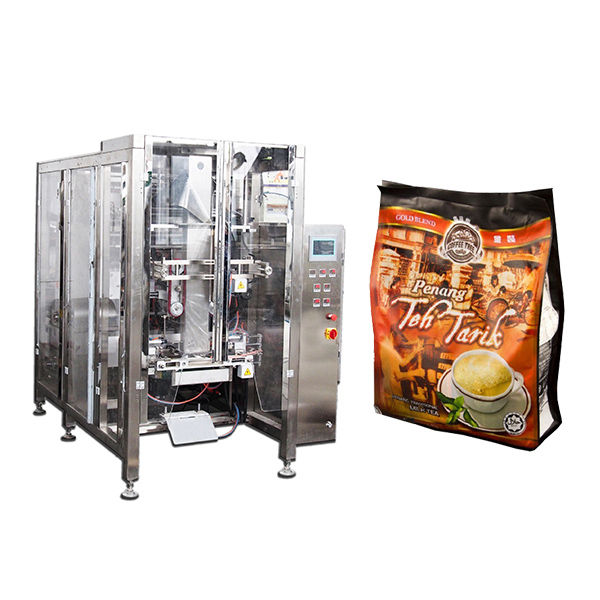

It’s configured to produce four corner edge seal stand-up bags, quad seal bags, it’s also available to do pillow and gusset bag by option.
Suitable for automatic packaging grain,puffed food,dried fruit,beans,seeds,sugar,salt,spice,peanuts,rice,tea,snack,potato chips,dumpling,detergent powder,drying agent,etc.
Features
- User friendly PLC controller & Touch screen interface
- Unique back-seal design are extremely flexible to run quad seal, pillow, gusset bag.
- Independent temperature zones
- Servo-driven film transport and cross sealing jaw
- Vacuum pump assists film transport
- Guarding style allows greater access & easy maintenance
- Fully enclosed stainless steel & aluminum construction
- Robust long-life construction
Technical Specifications
| Model | ZVF-540Q | ZVF-730Q | |
| Bag style | Quad Seal Bag, pillow and gusset bag | ||
| Bag length | Up to 340mm (13.4’’) | Up to 420mm (16.5”) | |
| Bag width | 80 to 200mm (3.1’’ to 7.9’’) | 100 to 240mm (4’’ to 9.4”) | |
| Bag Side depth | 50 to 100mm (2’’ to 3.9”) | 50 to 120mm (2’’ to 4.7”) | |
| Edge Seal width | 5 to 10mm (0.2’’ to 0.4”) | ||
| Film width | ≤540mm (21.3”) | ≤730mm (28.7”) | |
| Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
| Power Consumption | 3KW | 4KW | |
| Compressed Air Requirement | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) | ||
※Above parameters are able to be customized properly as requests.
Optional function devices
1. Hole punch device
2. Tear notch device
3. Bag- Linking control device
4. Air exhaust device
5. Nitrogen inflation device
6. Liquid pump device for packing liquid material
Optinal spare parts
1.Air compressor
2.Finished product conveyor
3.Checkweigher
4.Metal detector
5.Nitrogen-making machine
