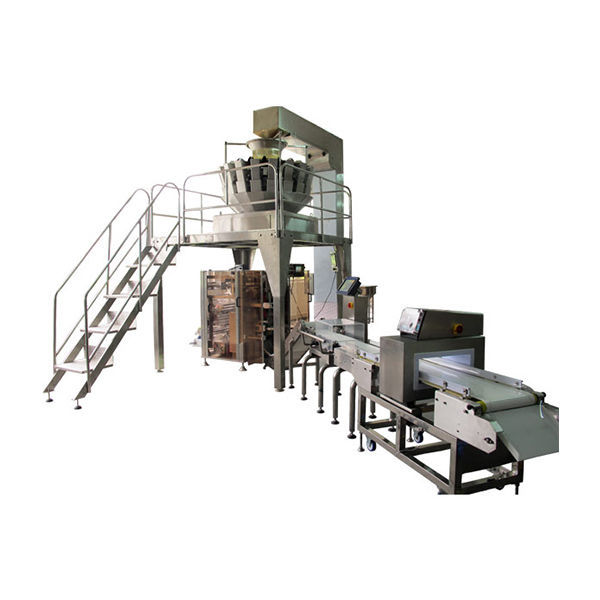

Product description
It’s configured to produce four corner edge seal stand-up bags, quad seal bags, it’s also available to do pillow and gusset bag by option.
Features
- User friendly PLC controller & Touch screen interface
- Unique back-seal design are extremely flexible to run quad seal, pillow, gusset bag.
- Independent temperature zones
- Servo-driven film transport and cross sealing jaw
- Vacuum pump assists film transport
- Guarding style allows greater access & easy maintenance
- Fully enclosed stainless steel & aluminum construction
- Robust long-life construction
Mini combination weigher is particular for weighing small dose of granules, such as herbs, tea, seeds, coffee beans, chocolate beans, and etc.
Our Advantage
- Touch screen interface
- Language support
- IP65 waterproof and dustproof design
- Program and mechanism diagnostic function
- Auto-selection and one-plus two collecting hopper system
- High precision diagital weighing sensor
- Adjustable opening angle of stepper motor to obtain high precision
- High-Speed and High-Accuracy mode is optional to pick
- Combination bucket could dump orderly to avoid products jam up
- User friendly operation manual could read on the touch screen
- Powerful statistics function, recording every batch production data
- Pieces counting function
- Enclosed stainless steel construction
Technical Specifications
| Model | ZVF-540Q | ZVF-730Q | |
| Bag style | Quad Seal Bag, pillow and gusset bag | ||
| Bag length | Up to 340mm (13.4’’) | Up to 420mm (16.5”) | |
| Bag width | 80 to 200mm (3.1’’ to 7.9’’) | 100 to 240mm (4’’ to 9.4”) | |
| Bag Side depth | 50 to 100mm (2’’ to 3.9”) | 50 to 120mm (2’’ to 4.7”) | |
| Edge Seal width | 5 to 10mm (0.2’’ to 0.4”) | ||
| Film width | ≤540mm (21.3”) | ≤730mm (28.7”) | |
| Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
| Power Consumption | 3KW | 4KW | |
| Compressed Air Requirement | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) | ||
Kindly Reminder
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
