Applications

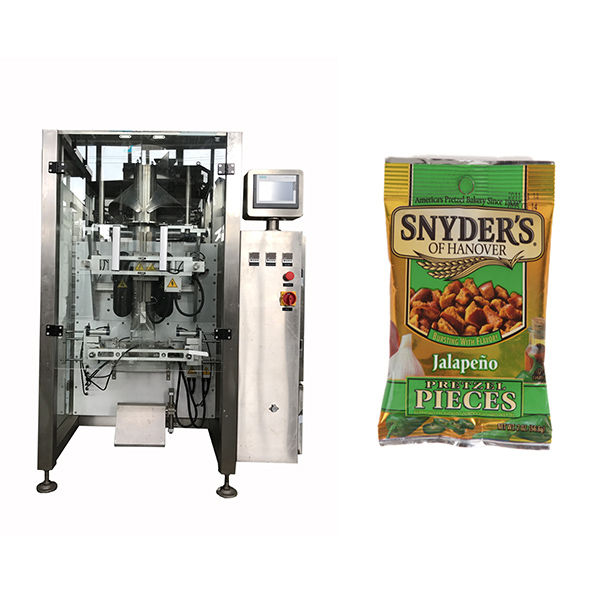

vertical form fill and seal (VFFS) machinery. product feeders, auger fillers and checkweighers. Iapack provides a complete vertical filling solution capable of handling any product that requires laminate film structures and polyethylene films. Iapack of filling methods are integrated with the Iapack line to package products such as spices and seasonings, flour based products, coffee, snack foods, candy, chemicals and liquids.
Iapack takes great pride in providing packaging lines that incorporate all three phases of our business model. Iapack’s capabilities are truly on display when an Iapack auger filler, vibratory filler, or piston filler is mounted on an Avatar VFFS while the Alpha Checkweigher validates proper functionality of the line.Iapack willingly integrates combination scale net weigh systems that can easily be customized at the request of the customer.
Features
- Fills 70 bags per minute.
- Forms and fills 0.5 oz to 5 lbs.
- Package sizes 2.0″ x 2.0″ to 8″ x 14″
- “Tool-less” changeover
- Common, off-the-shelf component types.
- PLC control stores 50 routines with a 7-inch widescreen color HMI.
Technical parameters
| Model | ZVF-200 |
| Bag Type | Pillow bag, Gusseted bag/Flat bottom bag |
| Operation Mode | Intermittent |
| Speed | Up to 70 bags/min |
| Bag Length | 50-280mm |
| Bag Width | 70-180mm |
| Reel Film Width | 420mm |
| Film Thickness | 0.04-0.12mm |
| Reel Outer Dia | Ф350mm |
| Reel Inner Dia | Ф75mm |
| Voltage | AC 220V/ 50HZ，1phase or per customer needs |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6MPa，0.36 M3 / Min |
| Machine Size | 1480x1020x1400mm（L x W x H） |
| Weight | 700KG |
Packing system composition.
1. Weighing Equipment: 1/2/4 head linear weigher, 10/14/20 heads multihead weigher, volume cup…
2. Infeed Bucket Conveyor: Z-type infeed bucket conveyor, big bucket elevator, inclined conveyor…
3.Working Platform: 304SS or mild steel frame. (Color can be customized)
4. Packing machine: Vertical packing machine, four side sealing machine, rotary packing machine…
5.Take off Conveyor: 304SS frame with belt or chain plate.
