Applications

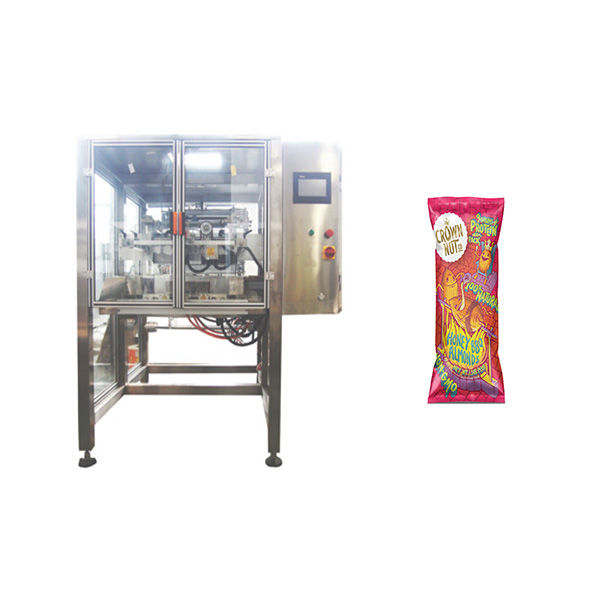

Vertical FF&S Intermittent Motion Bagger, designed for packing products into bags of max width 250 mm, wide range of products like loose food, plastic, metal etc Our machines are capable of producing a considerable variety of bags, for instance: flat bags, bricks, side gusset bags, stabile with 4 sealed corners, euro slot bags, handle etc
- Food loose
- Fresh, frozen
- Granulates
- Sweets
- PET food
- Cookies
- Coated nuts
- Frozen fruits, vegetables
- Metal, plastic parts
Features
- PLC control with Touch-Screen HMI
- Servo technology with high performance
- Simple and fast bag size changeover without tools
- Precision film auto tracking, length registered by photo-sensor or encoder
- Vacuum pump assists film transport
- Ajustable dwell time for better looking seals and increased packaging speeds
- Compact, robust and long-life construction
Technical Data
| Bag Styles | Pillow Bag |
| Bag Width | 80 to 260mm (3.1 to 10.3″) |
| Bag Length | 50 to 340mm (2.0 to 13.4″) |
| Product Characteristic | Granules, Powders, Liquids, Pastes |
| Dosing System Compatible | Volumetric Cup , Linear Scale , Multi-Head Scale |
| Running Motion | Continuous |
| Working Efficiency | 120bpm |
| Control By | PLC with HMI Touch Screen |
| Date Coding Can Be | Hot Stamping Coder, Thermal Transfer Coder, Label Applicator |
| Options Available | Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing |
| Film & Reel | 0.04-0.12mm Real Max.Dia.400mm(15.7″) Width 540mm (15.7″) |
| Power & Voltage | 3.0KW |
| Compress Air | Need 0.6 MPa 0.36 M3 |
| Dimensions | 1650 x 1140 x 1650mm (65.1 x 44.9 x 64.9”) |
| Machine Weight | 800 KGS |
Optional Device
1.Tear notch device
2.Hole punch device.
3.Static eliminator.
4.Gusset device.
5.Date printing.
6.Prevention broken bag device.
7.3 side seal device.
8.Nitrogen gas flushing.
9.Air flushing & Air exhaust device.
10.Heavy product bag support device.
11.PE film sealing device.
12.Prevention broken bag device.
