Product description
Its flexibility and versatility to produce a wide range of type and large dimension bags, being able to focus for food or non-food application.
Multiple combination weighing system. Fast, accurate, reliable and hygienic. Available in various models to suit specific requirements. The ideal weighing solution for achieving high production levels with maximum accuracy
It’s suitable for granule,chunk, flakes products, such as snacks, cheese, pasta, candies, pet foods, IQF frozen foods…
Ideal for quantitative weighing of granule, slice, flake, roll or irregular shapes materials, such as candy, snacks, pasta, IQF frozen food, cheese, rice, pet foods and other non-food products.
Features
- User friendly PLC & Touch Screen interface
- Language support
- Fault alarm shut down and message display
- Easy synchronization with peripheral equipment
- Fully interlocked guarding system
- Rugged , durable equipment to withstand severe environment

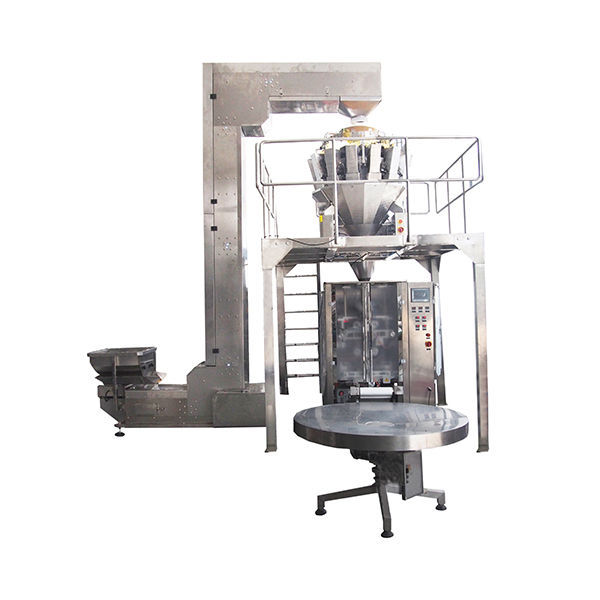

Multi-head Combination Weigher
Multiple combination weighing system. Fast, accurate, reliable and hygienic. Available in various models to suit specific requirements. The ideal weighing solution for achieving high production levels with maximum accuracy
Features
- Touch screen interface
- Language support
- IP65 waterproof and dustproof design
- Program and mechanism diagnostic function
- Auto-selection and one-plus two collecting hopper system
- High precision diagital weighing sensor
- Adjustable opening angle of stepper motor to obtain high precision
- High-Speed and High-Accuracy mode is optional to pick
- Combination bucket could dump orderly to avoid products jam up
- User friendly operation manual could read on the touch screen
- Powerful statistics function, recording every batch production data
- Pieces counting function
- Enclosed stainless steel construction
Technical Specifications
| Bag style | pillow bag; Gusseted or block bottom bag (Option) |
| Bag length | Up to 460mm ( 18”) |
| Bag width | 80 to 350mm (3.1’’ to 13.8”) |
| Film width | ≤730mm (28.7”) |
| Voltage | AC220V/50Hz, 1phase or Per customer specification |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) |
