Applications

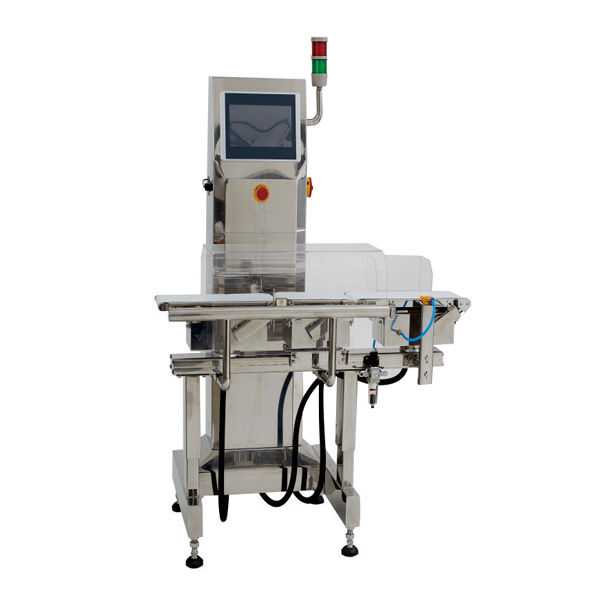

ZT Series checkweighers can handle various pack types, including bags, trays and cartons and are suitable for most production environments. Innovative modular design makes the checkweigher easy to clean minimizing downtime. Accurate and reliable, it utilize the latest weighing technology and offer various reject devices best suited to the line configuration.
Features
- Germany HBM Digital Load Cell
●Full color touch screen system, simple intuitive and easy to operate User friendly Touch Screen Controlleroperability.
●Conveyor belts are motorized by three units of individual stepper
●Auto alarm and belt stop with optional reject mechanism device
●Water-proof and dustproof IP30/IP66 optional.
●Stainless steel construction, built-in hinge design, easy to clean.
Technical Data
| Model | ZT-160 | ZT-230S | ZT-230L | ZT-300 | ZT-400 | |
| Detecting Range (kg) | 0.01~0.6 | 0.02~2 | 0.02~2 | 0.02~5 | 0.2~10 | |
| Scale Interval(g) | 0.05 | 0.1 | 0.2 | 0.2 | 1 | |
| Accuracy(Зσ) | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | |
| Detecting Speed(Max speed, pcs/min) | 250 | 200 | 155 | 140 | 105 | |
| Belt Speed | 70m/min | |||||
| Product size | W (mm) | 150 | 220 | 220 | 290 | 390 |
| L (mm) | 200 | 250 | 350 | 400 | 500 | |
| Weigher platform size | W (mm) | 160 | 230 | 230 | 300 | 400 |
| L (mm) | 280 | 350 | 450 | 500 | 650 | |
| Operation Screen | 7-inch Touch LCD Screen | |||||
| Product Storage Quantity | 100 kinds | |||||
| Segments Number of Sorting | 2 or 3 | |||||
| Rejecter | Rejecter Optional | |||||
| Power Supply; | 220V, 1ph or 380V, 3ph | |||||
| Degree of Protection | IP30/IP54/IP66 | |||||
| Body Material | Stainless Steel (SUS304) | |||||
Company Information
We attaches great importance on the construction of independent R&D ability and technical force, and has already built up a professional work team possessing independent R&D ability in order to design and produce better products to meet customers’ requirements. Our machines adopt advanced technology and have good quality with high detecting sensitivity, strong anti-interference ability, stable performance etc. Customization is available in COSO, and our engineers can design drawings for customers to meet special requirements, also we can design and install machines according to different production lines.
We adhere to the conception of “ Customer First”, regard meeting customers’ requirements as a primary goal and contribute to providing perfect products and satisfying services to our customers.
