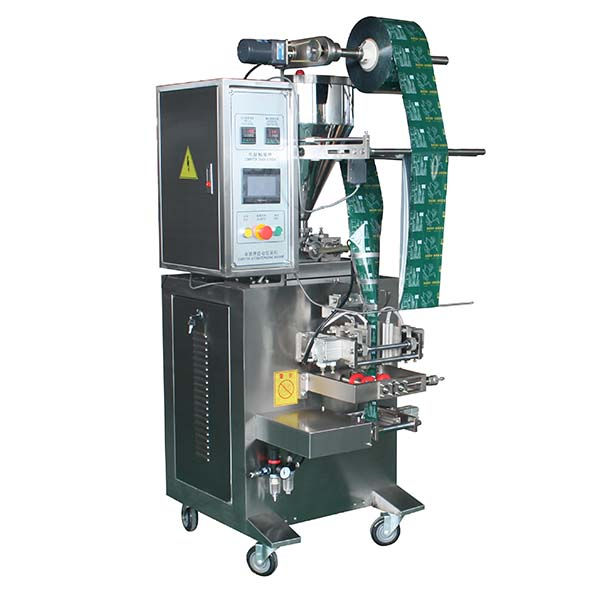

ztj series liquid paste sachet bagger

Product description

---

Integrated with piston filler as the dosing system, ZTJ series bagger is applied to packing liquid or paste, like water, juice, sauce, vinegar, honey, ketchup, mayonnaise, shampoo and etc.



Features

---

• High-speed capability up to 60bpm
• Intelligent chip controller with 5” LCD interface
• Frequency converter for option
• Independent temperature adjustment
• Easy for operation and maintenance
• Limitless speed adjustor for wider speed range
• 304# stainless steel frame for option
• High performance at low cost



Options

---

• Hot stamping date coder
• Gas flushing device
• Round hole punching device
• Chain-bag device
• Air reel film holder



Technical Specifications

---

Model	ZTJ-320	ZTJ-520	ZTJ-3S-320	ZTJ-4S-320
Bag style	Pillow bag	Pillow bag	3-side-seal bag	4-side-seal bag
Speed (bpm)	24-60	15-40	15-40;24-60	24-60
Packaging Weight (ml)	＜40; 20-100	500-2000	＜40; 20-100; 50-300	＜40, 20-100; ＜25, 20-75, 50-150
Bag length(mm)	30-180	100-310	30-150	30-150
Bag width(mm)	25-145	100-240	25-145	25-145
Film width(mm)	≤300	≤500	≤280	≤270
Reel film width	30-100mic.
Electrical	220V/50HZ, 1Phase or as per customization
Power consumption	1.8kw	2.5kw	1.8kw	2.2kw
Machine weight(kg)	280	350	280	280
