zvf-200g continuous motion vertical bagger

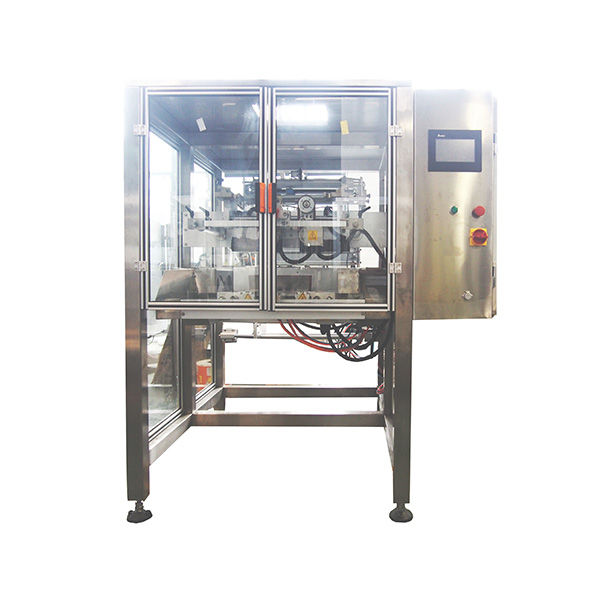

ZVF-200G Continuous Motion Vertical Bagger

Product description

  • High Speed Continuous Motion
  • Reciprocating By Servo Technology
  • Design For Small Packages
  • Make Pillow, Guesset & Block Bottom Bags
  • Synchronize Scale [email protected] BPM

Product Features

  • Famous Brands electrical parts, stable and functional.
  • Three servo motor for reciprocationg pull film system, can reach 180bpm.
  • Automatically film recitifying function, smart and convenient.
  • High speed packing,save labour, resoures and place.
  • Many kinds of languages can be chosen.


Additional Info

  • Bag Styles:Pillow Bag
  • Bag Width:60 to 200mm (2.4 to 7.9″)
  • Bag Length:50 to 300mm (2.0 to 11.8″)
  • Product Characteristic:Granules, Powders, Liquids, Pastes
  • Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler
  • Running Motion:Intermittent
  • Working Efficiency: 180 bags / min
  • Control By:PLC with HMI Touch Screen
  • Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
  • Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
  • Power & Voltage:8 KW
  • Compress Air:7MPa 0.3 M3/min
  • Dimensions:1380mm*980mm*1400mm (54.3*38.6*55.1″)
  • Machine Weight:600 KGS

Main Features

1.With the function auto filling, measuring, bag forming, code printing, sealing and cutting. Bag-making system adopts step motor with high precision
2.Touch screen display.
3. Controller adopts Chinese or English displaying, can see the working conditions directly.
4. With intelligent photoelectric controller system.
5. Machine body full of 304 stainless steel.
6. Liquid filler, high accuracy.
7. Good visibility with side-open protective platens, operate safely.
8. Adopt the newest hopper sets, easy to adjust and clean, no need adjust again after clean, so that can improve working efficiency
9. This machine is suitable for the packing of granule products, bag can choose from 3-side or 4-side seal or back seal according to customer needs.
10. Ribbon printer is addable according to customer needs, which can print one to three lines letter, date of produce and batch number.
