Product description
- Design For Large Dimension Packages
- Make Pillow Bag, Gusseted Bag, Block Bottom Bag
Features
1.Equipped with safety protection, comply with firm’s safety management requires;
2.Use intelligent temperature controlling machine to have accurate temperature control; ensure the artistic and neat seal;
3.Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize
the whole machine’s control precision, reliability and intelligentized level;

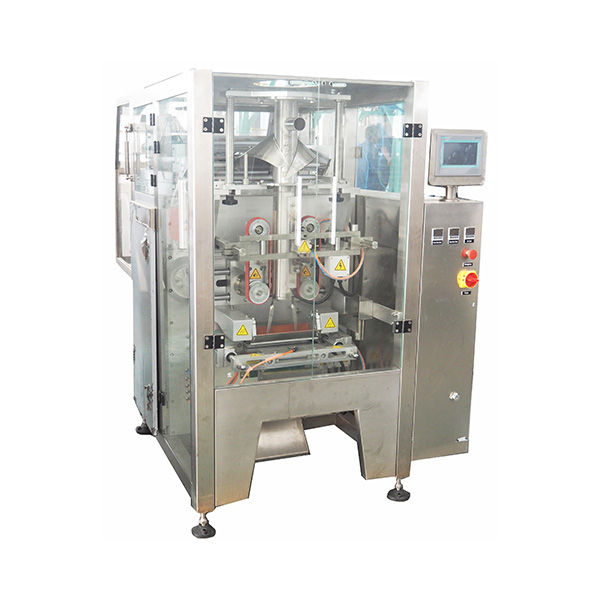

4.ZVF-350 Automatic Vertical Packaging Machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging
(exhausting) and products transporting automatically as well as counting;
5.Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing;
6.Have error indicating system, helping to handle the trouble immediately;
7.Make block bags and hanging bags according to customers’ different requires;
8.Both stainless steel machines and carbon steel machines;
9.Single-belt transportation, placidly and quickly, small friction, little waste;
10.Have stainless steel model and carbon steel model for choose.
Additional Info
- Bag Styles:Pillow Bag, Gusseted Bag
- Bag Width:100 to 350mm (3.9 to 13.8″)
- Bag Length:80 to 470mm (3.1 to 18.5″)
- Product Characteristic:Granules, Powders, Liquids, Pastes
- Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler
- Running Motion:Intermittent
- Working Efficiency:5-60 bags/min
- Control By:PLC with HMI Touch Screen
- Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
- Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
- Power & Voltage:3 KW
- Compress Air:0 MPa 0.4 M3/min
- Dimensions:1700*1270*1900mm (66.9*50*74.8″)
- Machine Weight:900 KGS
Our Services
- We will provide the best service in the sale
- We will ensure high quality to meet your any requirements.
- Professional engineers can design any special packaging solutions for you.
- We assure all the machines one year to maintain good quality and high efficient performance, and provide life-long maintenance services.
- Other auxiliary machines are available,including weighers,conveyors,such as screw weigher, bucket elevator and belt conveyor, etc.
