Applications

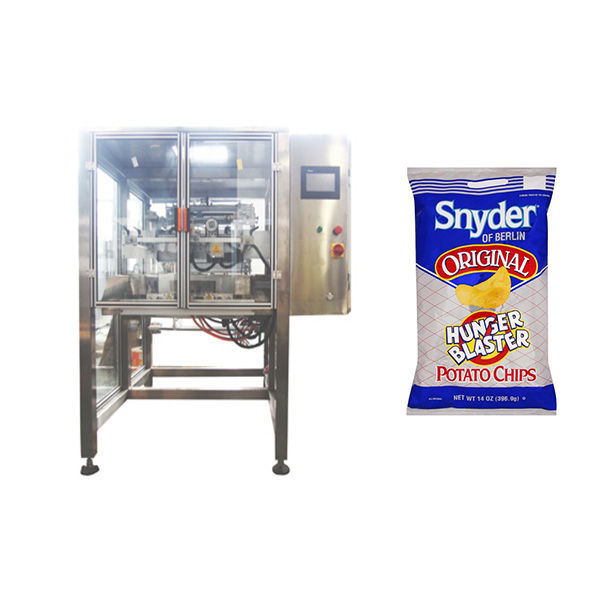

Durable, compact VFFS bagger fits into tight spaces and tight budgets! This vertical packaging machine is perfect for packaging snacks and coffee.
The versatility of ZVF Series VFFS bag maker is range from “tube nut” style bags up to jumbo bag, the success of products depending on highly attractive packaging aesthetics. Suitable for packing potato chips, biscuit, pasta, peanuts, nuts, coffee, beans, popcorn, cereals, extruded snacks, confectionery, dreied & freozen fruits, pets food, vegetables, pills, electronics, plastics, hardware, toys and other granular food & non-food products.
Features
Below you will find features of the Mercury vertical bagging machine.
Stainless steel construction
Small foot print
Speeds up to 130 BPM
Bag width from 2″(51mm) to 11″(280mm)
Bag length from 3″(76mm) to 15.75″(400 mm) on a single pull
High speed stepper electric “SmartJaw” ST horizontal sealing system
Self-centering film drive down system
Allen Bradley MicroLogix 1200 PLC control system
5.7″ Color Touchscreen
Bilingual operator interface (English/Spanish)
Four zone temperature control within PLC
Automatic edge guide film tracking system, Encoder and registration sensor standard
Short travel, angled incline film unwind system
Tool-Free quick change core chucks
Modular, non-proprietary design
CE – Certificate of Conformity, Certificate of Incorporation (available as an option)
Technical Data
| Model | ZVF-260G |
| Bag Type | Pillow bag, Gusseted bag/Flat bottom bag |
| Operation Mode | Intermittent |
| Speed | Up to 100 bags/min |
| Bag Length | 50-340mm |
| Bag Width | 80-260mm |
| Reel Film Width | 420mm |
| Film Thickness | 0.04-0.12mm |
| Reel Outer Dia | Ф450mm |
| Reel Inner Dia | Ф75mm |
| Voltage | AC 220V/ 50HZ，1phase or per customer needs |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6MPa，0.36 M3 / Min |
| Dimension | 1600x1217x1680mm（L x W x H） |
| Weight | 800KG |
