Applications
Durable, compact VFFS bagger fits into tight spaces and tight budgets! This vertical packaging machine is perfect for packaging snacks and coffee.

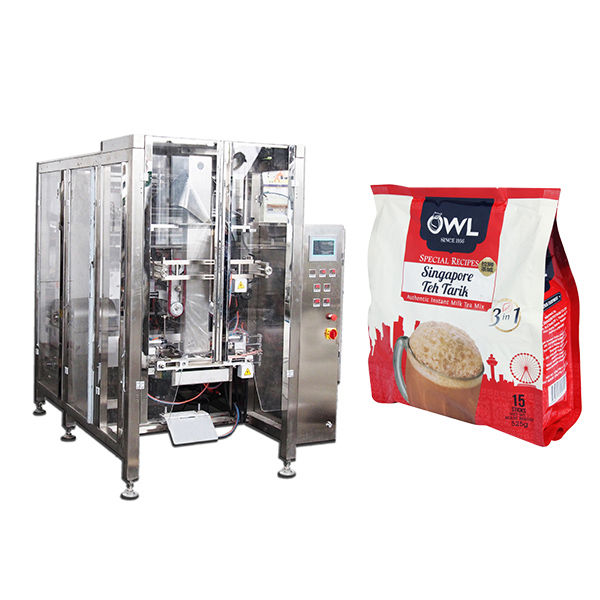

It is a quad bag type vertical form fill seal packing machine for food, and a wide variety of other products, such as coffee, tea, etc, creating the beautiful bag shape with 4 edges sealing.
Features
Below you will find features of the Mercury vertical bagging machine.
Stainless steel construction
Small foot print
Speeds up to 130 BPM
Bag width from 2″(51mm) to 11″(280mm)
Bag length from 3″(76mm) to 15.75″(400 mm) on a single pull
High speed stepper electric “SmartJaw” ST horizontal sealing system
Self-centering film drive down system
Allen Bradley MicroLogix 1200 PLC control system
5.7″ Color Touchscreen
Bilingual operator interface (English/Spanish)
Four zone temperature control within PLC
Automatic edge guide film tracking system, Encoder and registration sensor standard
Short travel, angled incline film unwind system
Advantages
* Nice bag style: block bottom bag with four vertical seals, also can be with five seals including back seal
* Film pulling system controlled by servo motor
* Can be combined with coffee valve system, weigher, auger filler and other measuring devices and conveyors
* Panasonic PLC for easily operating
Technical Data
| Model: | ZVF-540G | ZVF-730G | |
| Bag type | pillow, gusseted bag | ||
| Operation Mode | Intermittent | ||
| Speed | 18 to 40 bags/min | ||
| Quad Seal Bag | Length | Up to 340mm (13.4’’) | Up to 460mm (18’’ ) |
| Width | 80 to 200mm (3.1’’ to 7.9’’) | 100 to 240 mm (4’’ to 9.4’’) | |
| Depth | 50 to 100mm (2’’ to 3.9’’) | 50 to 120 mm (2’’ to 4.7’’) | |
| Corner | 5-10mm (0.2’’ to 0.4’’) | ||
| Reel Film Width: | 540mm (21.3in) | (28.7in) | |
| Reel Outer Dia. | 400mm (15.8in) | 500mm (19.7in) | |
| Reel Inner Dia. | 75mm (2.9in) | ||
| Electrical | 220V/50Hz, 1phase or per customer specification | ||
| Power | 3KW | 4KW | |
| Air Pressure & Consumption | 0.6 MPa 0.6 M3/min ( 87 Psi, 12.7cfm) | ||
| Footprint
(W x D x H) |
1300 x 1650 X 1650 mm;
(4’4” x 5’55” x 5’5”) |
1450 x 2600 x 1950 mm;
(4’9” x 8’6” x 6’4”) |
|
| Machine Weight | 1000kgs | 1200kgs | |
