Applications
Rotary bag-given packing machine with different dosing(Such as multihead weigher,auger filler,liquid filler etc.),Can be suitable for the automatic packing for granular,powder,liquid,paste etc.Different kinds of rpoduct with the premade stand-up pouch,flat pouch and so on.
Features
- Easy To Operate:PLC control, man-machine interface.
- Frequency Conversion Speed Regulation:Using frequency conversion adjustment device, the speed can be adjusted at will in the specified range.
- Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
- The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
- Open Zipper Mechanism:Design for zipper bag characteristics, high opening rate (invention patent) .
Safety Device
- No pouch or open error,on filling.
- No pouch or no filling,no sealing.
- No coding ribbon,Emergency stop and alarm.
- The safety door open,alarm(option)
- The air pressure not enough,alarm.
- The sealing temperature anomaly,alarm
Technical Data

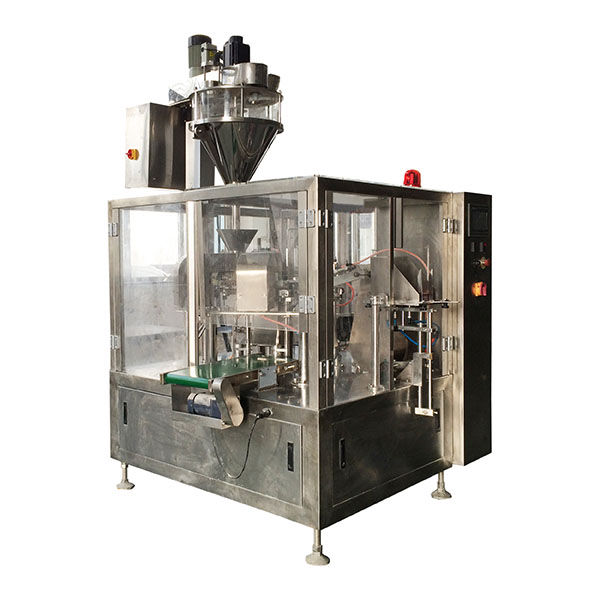

| Product Name | Powder Filling Sealing Packaging Machinery |
| Pouch Material | Laminated film,PE,PP |
| Pouch pattern | Stand up pouch,stand up pouch with zipper/spout,Flat pouch |
| Max filling range | Up to 5kg |
| Filling accuracy | +-0.5-1.5% |
| Pouch size | W:100-210mm L:100-350mm(can choose other size) |
| Speed | 10-60bags/min |
| Voltage | 380V3phase 50HZ/60HZ(Customized) |
| Total power | 8.5KW |
| Compress air | 0.6m3/min(supply by user) |
FAQ
Q1: Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
Q2: Do you have quality certificate?
Yes ,we have CE, SGS etc.
Q3:What’s the MOQ,delivery time, warranty and installation terms?
MOQ: 1 set
Delivery time: 25 working days. (based on order.)
Warranty period: whole machine 1 year. In warranty period, We will send the part free to replace the one that is not broken by purpose.
Installation: Engineers available to service machinery overseas.
